European standard hydraulic vehicle loading ramp

Europe standard hydraulic car loading rampDock Leveler hydraulic boarding bridge is a special auxiliary equipment for fast loading and unloading of goods. Its height adjustment function makes a bridge between the truck and the cargo platform of the warehouse. The trucks such as forklifts can directly enter the truck to carr
send email to us

Featured Products



Europe standard hydraulic car loading ramp
Dock Leveler hydraulic boarding bridge is a special auxiliary equipment for fast loading and unloading of goods. Its height adjustment function makes a bridge between the truck and the cargo platform of the warehouse. The trucks such as forklifts can directly enter the truck to carry out the batch of goods. Loading and unloading, only one person can work, and the cargo can be quickly loaded and unloaded. Boarding bridges enable companies to reduce labor, improve work efficiency and gain greater economic benefits.

1. Data Sheet:
Model No.DCQ-6DCQ-8DCQ-10DCQ-12
Load Capacity (t)681012
Platform Size (mm)2000*2000/25002000*2000/25002000*2000/25002000*2000/2500
Lip Width (mm)400400400400
Travel Height (mm)Updip300300300300
 Downdip200200200200
Motor Power (kw)0.750.750.750.75
Pit Size (mm)2080*2040*6002080*2040*6002080*2040*6002080*2040*600
Platform Materials6mm checked steel plate Q235B6mm checked steel plate Q235B6mm checked steel plate Q235B8mm checked steel plate Q235B
Lip Materials14mm Q235B plate16mm Q235B plate18mm Q235B plate20mm Q235B plate
Lifting Frame120×60×6 profile steel160×80×6 profile steel200×100×6 profile steel200×100×6 profile steel
Bed Frame120×60×5 profile steel120×60×6 profile steel120×60×6 profile steel120×60×6 profile steel
Shaft PinØ30 steel rod,30×50 welded tubeØ30 steel rod,30×50 welded tubeØ30 steel rod,30×50 welded tubeØ30 steel rod,30×50 welded tube
Cylinder Support Plate12mm Q235B plate12mm Q235B plate12mm Q235B plate12mm Q235B plate
Cylinder Pin45# Ø50 rod steel*445# Ø50 rod steel*445# Ø50 rod steel*445# Ø50 rod steel*4
Lifting Hydraulic CylinderHGS series Ø80/50HGS series Ø80/50HGS series Ø80/50HGS series Ø80/50
Lip Hydraulic CylinderHGS series Ø40/25HGS series Ø40/25HGS series Ø40/25HGS series Ø40/25
Hydraulic Oil PipeDouble wire mesh high pressure tubing 2-10-43MPaDouble wire mesh high pressure tubing 2-10-43MPaDouble wire mesh high pressure tubing 2-10-43MPaDouble wire mesh high pressure tubing 2-10-43MPa
Pump StationCombined type CDK series 0.75KWCombined type CDK series 0.75KWCombined type CDK series 0.75KWCombined type CDK series 0.75KW
Electrical applianceDelixiDelixiDelixiDelixi
Hydraulic OilML series antiwear hydraulic oil 6LML series antiwear hydraulic oil 6LML series antiwear hydraulic oil 6LML series antiwear hydraulic oil 6L

2. Photos Review:

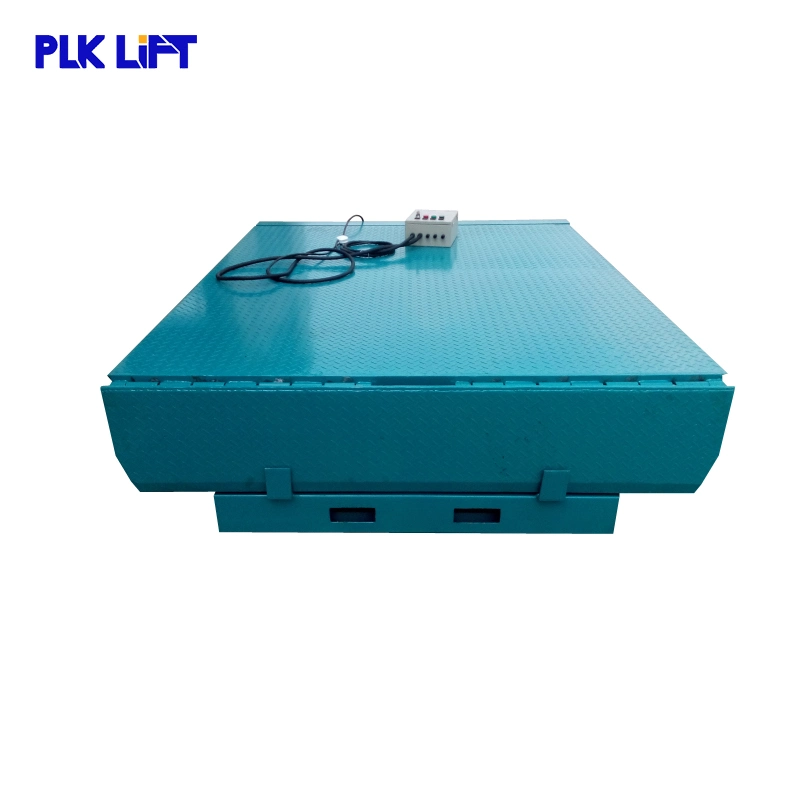

Europe Standard Hydraulic Car Loading Ramp


3. Details Disply:

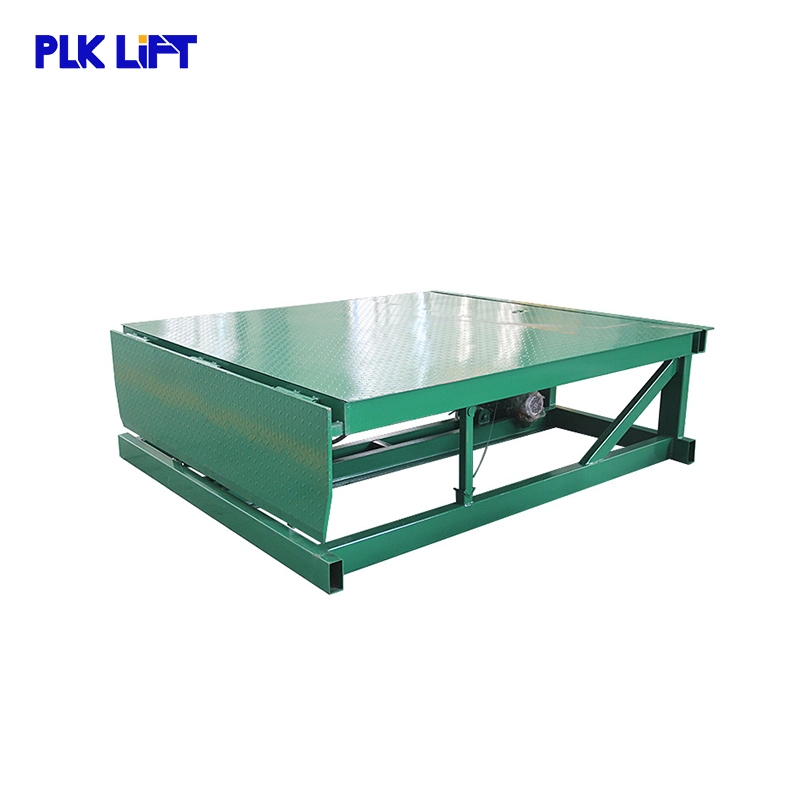

Europe Standard Hydraulic Car Loading Ramp


4. Real Orders Show. Applicable to all kinds of vehicles on the loading and unloading site. Loading/unloading platform, lifting platform.
Europe Standard Hydraulic Car Loading Ramp


5. Welcome to visit our factory and place the order with us.
Europe Standard Hydraulic Car Loading Ramp

6. All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
